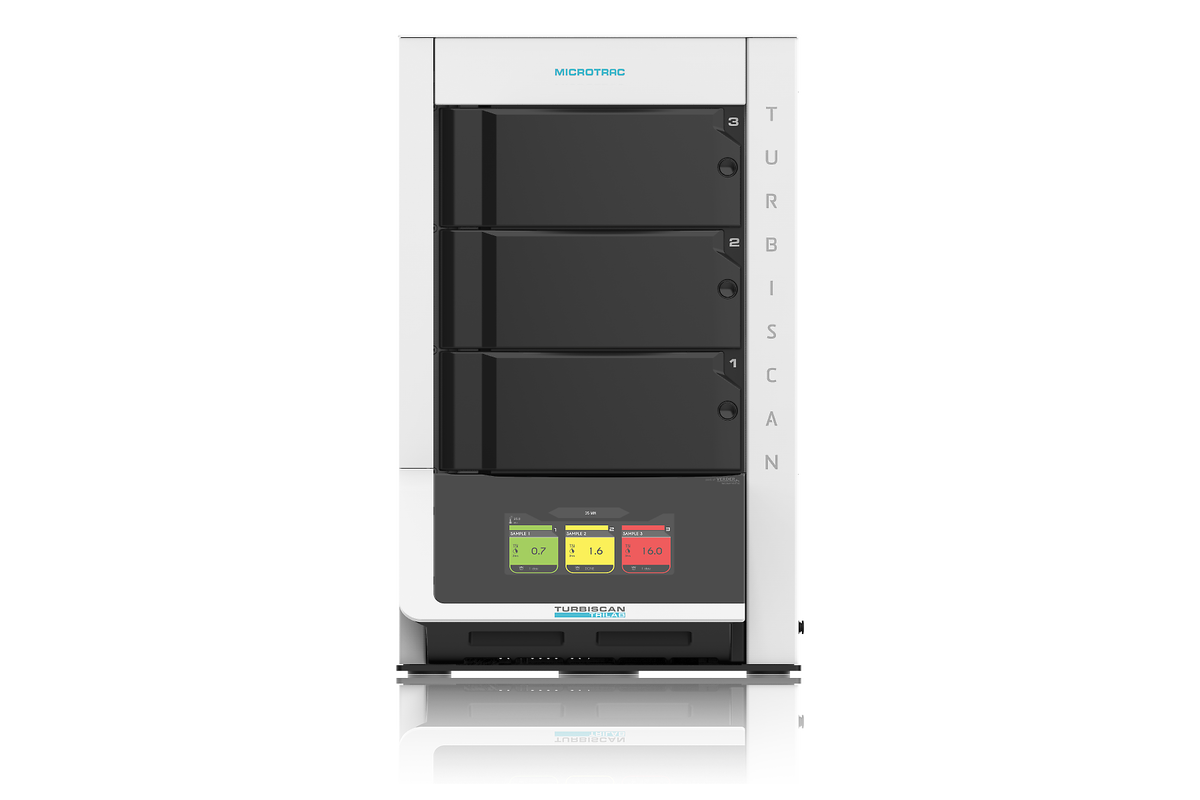

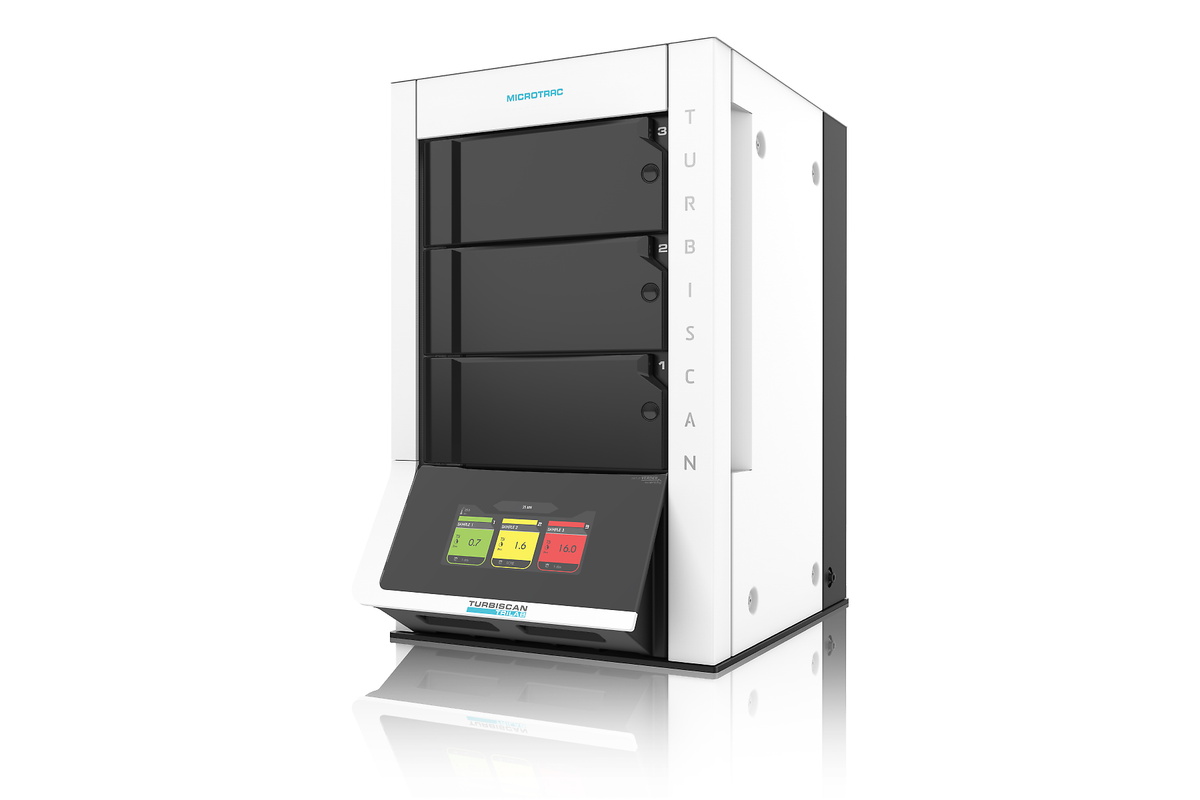

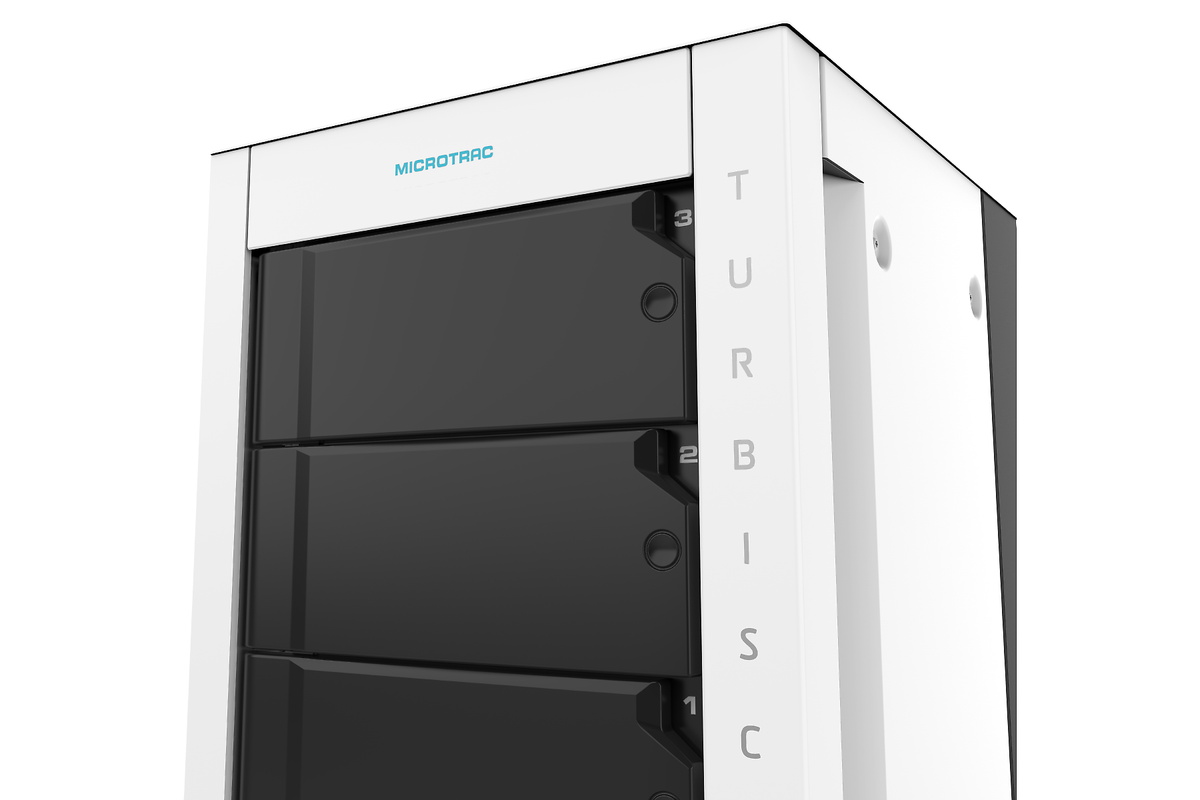

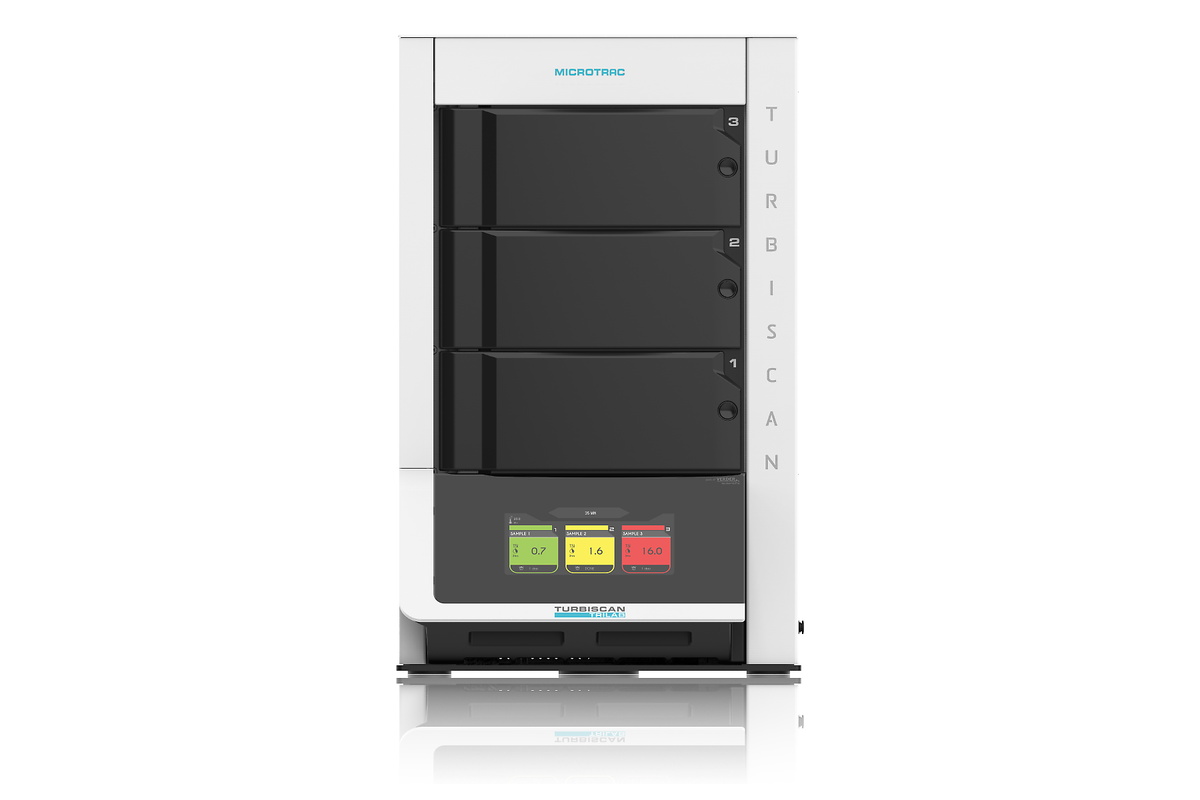

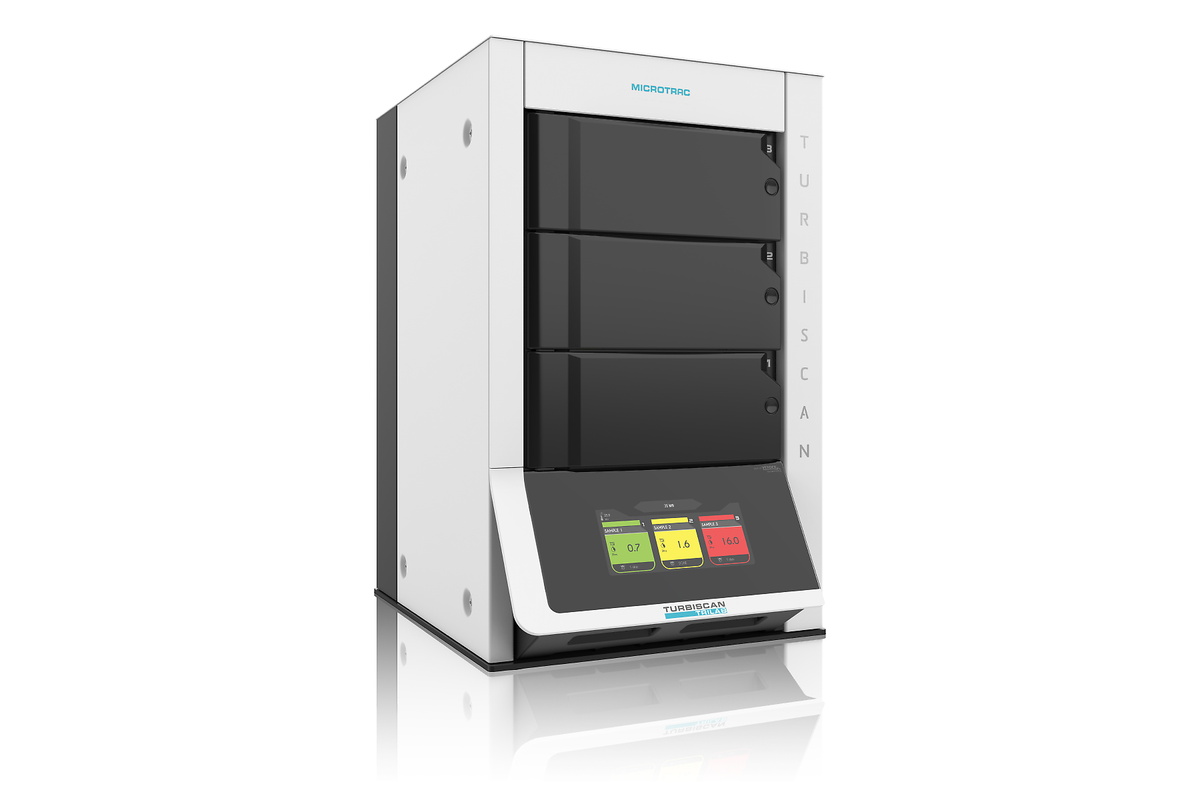

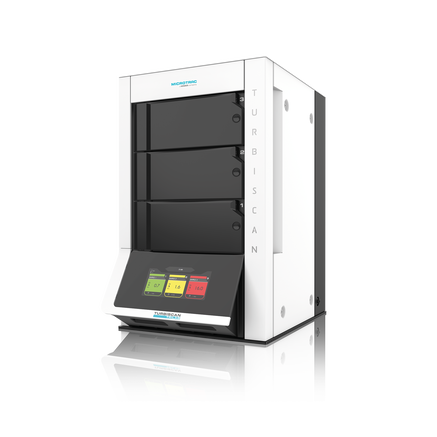

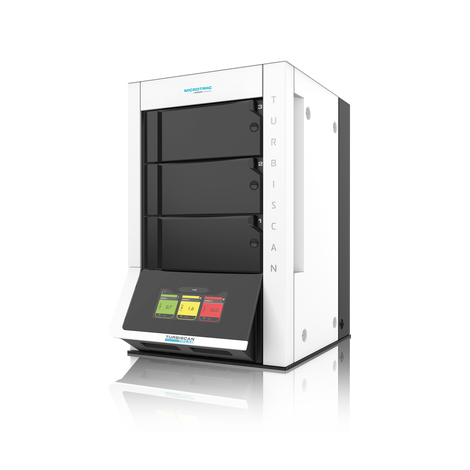

The TURBISCAN TRILAB is a macroscopic and colloidal stability analyzer based on SMLS technology and designed to measure multiple samples. It enables fast and reliable stability analysis of formulations (emulsions, suspensions, foams) and offers several advantages for analyzing the stability of dispersed systems.
The TURBISCAN TRILAB allows the simultaneous and independent analysis of up to 3 samples, saving time and resources. It also offers a comprehensive and quantitative characterization of the physical phenomena involved in destabilization such as sedimentation, creaming, flocculation or coalescence. The extreme sensibility of SMLS technology not only saves time, but also offers accelerated stability tests by varying the temperature (20 to 60°C) and fully complies with ISO recommendations (ISO TR13097, ISO TR 18811). The stability measurement is carried out by a non-invasive, non-destructive measurement, whereby the integrity and originality of the samples is preserved. The TURBISCAN technology guarantees the direct measurement of macroscopic and colloidal stability without dilution or mechanical stress.
Whenever you are working with suspensions, emulsions, colloids, or foam, the TURBISCAN is your ideal characterization companion. The TURBISCAN series is used in various industries such as pharmaceuticals, cosmetics, food and beverage, paints and coatings, oil and gas, batteries, agrochemicals, chemistry, and much more.
エマルション
サスペンション
コロイド粒子 & ナノ粒子
The TURBISCAN technology offers a significantly faster (up to 1,000 times) and more reliable detection of sedimentation compared to visual observation. Furthermore, naked-eye observation makes it difficult to calculate the migration rate and is prone to error and misinterpretation. In contrast, the TURBISCAN technology provides a fast and non-destructive way to detect and quantify sedimentation and particle size over time and can detect even small changes in highly concentrated samples without any dilution or mechanical stress. This makes it ideal for analyzing complex suspensions and formulations, and getting a quicker, reliable, and more accurate answer on sedimentation monitoring.
When it comes to measuring droplet migration and creaming behavior in emulsion systems, the TURBISCAN technology has several advantages for formulators. On one hand, it provides a fast measurement (up to 1,000 times faster than visual observation) of native samples and a non-destructive way to detect and measure droplet migration. On the other hand, the migration rate can easily be determined and helps the formulator to compare formulas, making it ideal for analyzing complex emulsions with a wide range of droplet sizes and concentrations. Additionally, the TURBISCAN technology provides insights into the mechanisms driving droplet migration, which can be used to improve formulation and processing conditions. Overall, the use of TURBISCAN technology in emulsion analysis leads to faster, more accurate, and more reliable results compared to traditional methods.
The TURBISCAN has been extensively used to measure the physical stability of formulations and colloidal systems. This technology helps the formulator to save time and precisely rank and quantify the samples’ stability in different trials or batches. It applies to native samples, even on very highly concentrated formulations. Not only saving time, the TURBISCAN also provides destabilization speed and metrics as well as robust analytics to make shelf-life predictions. The TURBISCAN technology complies perfectly with ISO TR13097 recommendations and is ideal when it comes to quickly and accurately measuring stability. Stop the guesswork and make decisions based on facts!
Measuring the stability of emulsions and formulations is traditionally done by visual observations. In addition to being long and tedious, the visual inspection of emulsion destabilization usually ends up with a pass / fail answer. This is suboptimal for fine-tuning the ideal concentration of surfactants or stabilizers to be added to reach the desired shelf-life. The TURBISCAN is a great help in this regard; not only does it save a huge amount of time to detect the destabilization, but it also provides a value based on the instability and ranks different formulas as a function of their shelf-life. It hence produces objective and repeatable data to make a better, greener, and safer product.
Stability and shelf-life testing are essential for pharmaceutical products and drugs. Destabilization or instabilities in vaccines, parenteral dispersions, or pharmaceutical products can have a major impact on product efficacy, and in some cases, on patient safety. While many techniques are available, the TURBISCAN offers in-situ, non-dilution, and non-destructive measurements to detect destabilization and save time therein. It provides a clear, precise, and objective stability measurement, essential to making fast and right decisions in R&D or quality control. The TURBISCAN has been intensively used to study the stability and redispersion capability of vaccines, as well as of parenteral and injectable dispersions and providing scientists with a deep insight into the dispersion state and its evolution.
There is an exponential demand for energy storage and batteries, either to cover our need for mobility and communication or to match environmental challenges. Lithium-ion batteries are the most widely used technology, and one of the key steps in developing and manufacturing them is the slurry formulation (used on the electrodes), ensuring the final battery quality. This slurry is usually highly concentrated and dark (due to a high concentration of carbon black) and using conventional light scattering techniques for evaluation is challenging or requires an important amount of dilution. The TURBISCAN has been successfully used to monitor the stability of these slurries and helps the formulator to optimize the formulation, test the production, and identify new raw materials.
アプリケーションデータベースに各種資料を掲載しております。
Data acquisition, interpretation, and export are done with TURBISOFT, the dedicated and intuitive software for the TURBISCAN range. TURBISOFT has been developed for and is continuously optimized towards more intuitive and straightforward data analysis, hence saving time and helping users to get the results they need in a few clicks.
Several options are available to sample and test the stability of your products. From standard, disposable 20 ml vials glass vials to small volumes (down to 2 ml) and to match your specific needs (syringe type, very high viscosity sample ...). We got this covered!
Standard Vials (20 ml)
Cylindric glass vials have a recommended volume of approximately 20 ml. They are disposable to avoid chemical or bacterial contamination and decrease labor costs for washing and drying. The vials are closed thanks to a cap and a disposable PTFE seal to prevent evaporation in case of elevated temperature. These vials are meant to reproduce your visual stability test.
Small Volume (4 ml)
Small sample volume? No problem. Small-volume vials and the specific adapter are available. The measurement can be done with as few as 2 ml. Another good news: the sample can be fully recovered, and TURBISCAN measurement is non-contact / non-destructive.
On-Demand Vials (Syringe Type, Pressurized)
You have special requirements – and we have the solutions! Our development team loves challenges, which is why we can offer on-demand adapters for your work on very specific samples (syringes, pressurized vials, etc.). Perfect to study the stability in specific conditions (pressure) or for QC control.
Coring Vials
There are samples that are either difficult to transfer or too fragile to be poured – the coring vials set helps to bypass this problem. The open base (which is manually closed with a stopper) allows a sticky sample or foam to be easily removed with the coring vials.
Calibration Standards
Each TURBISCAN comes with a set of standards to check instrument calibration. The TURBISCAN software, TURBISOFT, guides you step by step and once the procedure is finished, the software gives an "Okay" signal. The test and results are saved, and the instrument checking procedure can be tracked.
Particle Size Distribution
The TURBISIZE software can measure the distribution of particle size (ISO13317) and the distribution of migration speed for any data obtained with a TURBISCAN, without any need to dilute, prepare, or modify the sample.
当社の測定器は、科学や研究における幅広い応用分野のベンチマークツールとして認められています。これは、科学出版物における広範な引用によって反映されています。以下に掲載されている記事をご自由にダウンロードし、共有してください。
| Automatic sample recognition (bar-code) | あり |
| CE認証 | あり |
| 寸法 | 38 x 48 x 58 cm |
| Displacement interval max. resolution | 5 µm |
| 関連規格 | ISO/TR 13097:2013, ISO/TR 18811:2018, ISO/TS 22107:2021, ISO/TS 21357:2022 |
| Measured size range | 10 nm - 1 mm |
| 測定原理 | Static Multiple Light Scattering (SMLS) |
| Number of Samples | 1 - 3 |
| Reproducibility / Repeatability on latex standards | +/- 0.05% / 0.05% |
| サンプル濃度 | 0.0001 - 95% v/v |
| 試料の量 | 2 - 20 mL |
| Scan step resolution | 20 µm |
| ソフトウェア | Turbisoft Trilab |
| 温度範囲 | 20 - 60°C |
| 重量 | 35 kg |
本ページに記載の内容は予告なく変更・修正することがあります。
