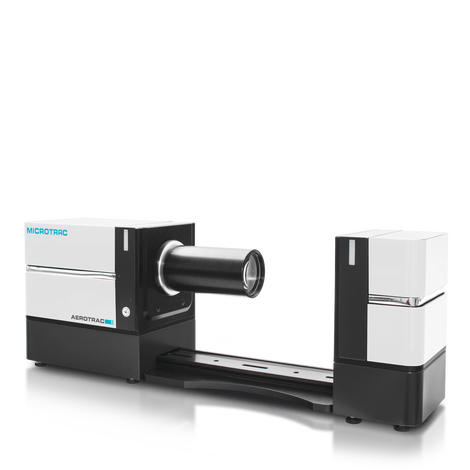

Spray particle & spray droplet size analyzer AEROTRAC II

The AEROTRAC II is an analyzer for particle size distributions & concentration ratio analysis (calculated from transmitted laser light) for suspended particulates in air such as atomized droplets, powders, spray particles, mist and etc.

Click to view video

Product Video

Spray particle & spray droplet size analyzer AEROTRAC II Product Advantages

Wide range of applications
Measurement modes to support various applications
Key start (manual operation via keyboard)
Auto start (automatically starts when detecting scattered light from particulates)
Measurement start via external signal input
0.02msec～ Accurate particulate analysis at short measurement intervals
Provided with multiple scattering correction software as standard
The instrument can be set up in a limited space
Equipped with a semiconductor laser

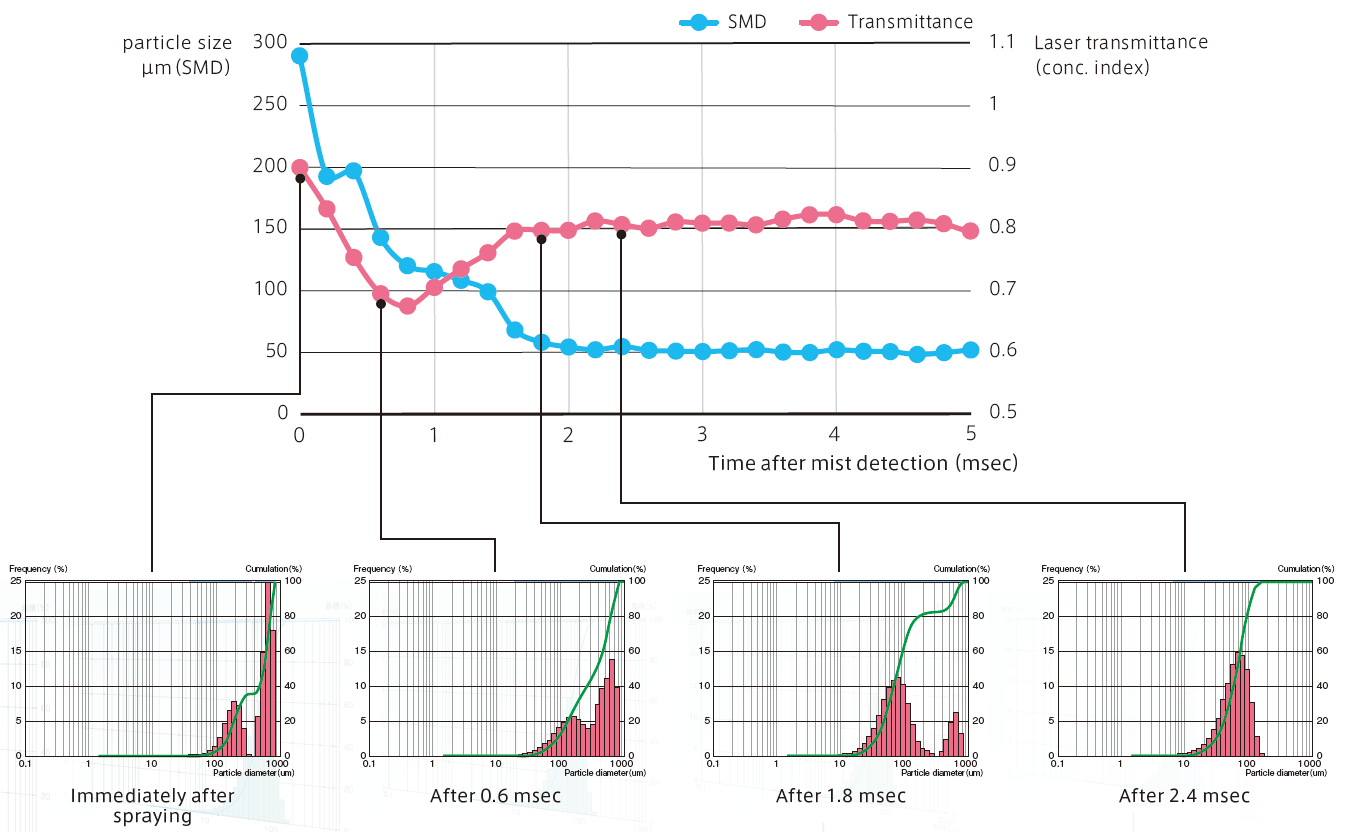

Measurement Examples Analysis of temporal change of spray mist

Spray particle & spray droplet size analyzer AEROTRAC II Accessories and Options

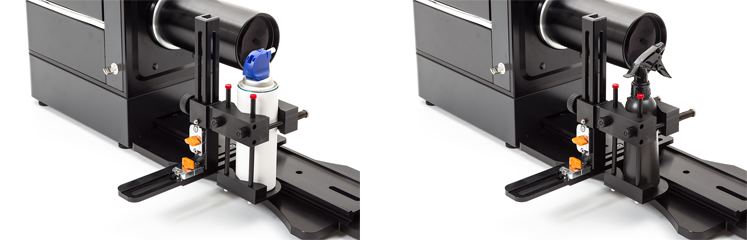

Fixing jigs to support various types of sprays

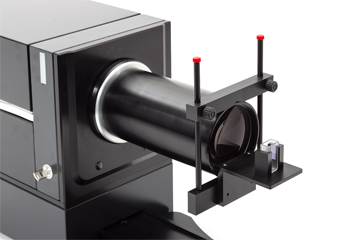

Wet measurement using a batch cell

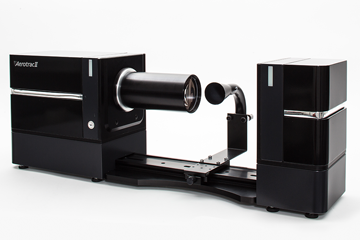

Dry measurement

Typical Applications

AEROTRAC II can be used in a wide variety of fields, including droplets from injectors, nebulizers, insecticides, lotions, humidifiers, mist separators, powder paint and various powders.

pigments

lotions

powders

To find the best solution for your particle characterization needs, visit our application database

Application Database

Spray particle & spray droplet size analyzer AEROTRAC II Technical Data

Measurement principle	Laser diffraction
Measuring range	F100 lens: 0.5 to 350 µm F300lens: 1.4 to 1000 µm F600 lens: 2.8 to 2000 µm
Light source	Semiconductor laser Wavelength: 635 nm Output: 3.5 mW Laser class: CLASS 3R
Detector	32-element ring detector (with automatic optical axis adjustment function
Measuring time	Spray measurement: 0.02 to 500 msec Continous measurement: 1 to 600 sec
Number of measurements	Spray measurement: 1 to 100 times Continous measurement: 1 to 9,999 times
Data	Particle size distribution (frequency/cumulation), summary data (D50% particle size, SMD, mode diameter etc.) density index
Sample Cell	Material: Tempax glass (with coating) Capacity: 5 to 7 ml
Environmental conditions	Ambient temperature: 10 to 35 °C Ambient humidity: 20 to 80% R.H. (no condensation)
Power requirements	85 to 264 VAC, 47 to 63 hz
Dimensions (W x H x D)	Light emission module: 170 × 230 × 240 mm Detection module: 595 × 230 × 240 mm For connected modules (option): 1000 × 230 × 340 mm, 27 kg
Weight	Light emission module: 5.5 kg Detection module: 11.5 kg (with F300 lens attached) For connected modules (option): 27 kg
Operating unit	Windows PC (including laptop PC)

_{Content may be subject to modifications or corrections}
